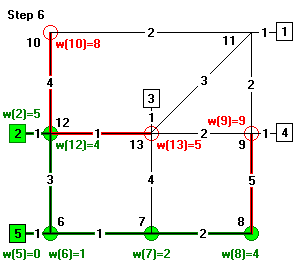

Step 6. Centroid 2 is added (permanently labeled) to the MP tree. Both centroid
2 and node 13 are equidistant from the origin node but since centroid 2 was added to the
loose ends table first, it is selected first for the MP Tree.
Travel forecasting convention does not allow minimum paths to pass through a centroid
because centroid connectors are typically abstract representations of local streets and
not actual links. Therefore, no further searching occurs from this node. Links from 12
to 10, 12 to 13, and 8 to 9 are still under consideration. Note: if the objective was
to find the MP from centroid 5 to only centroid 2, then the algorithm would terminate.
|
